- The current and voltage regulation is effective, and the wind energy utilization rate is high. with this wind power generator you could use less power which generated from coal and other fossil fuel. Make you contribution to reduce carbon emission.
- This wind turbine comes with a 12V MPPT Controller, low Start-up Wind Speed:2.5m/s(8'/s); Rated Wind Speed: 12m/S(35ft/s); Rated Speed: 800RPM/min; Wind leaf Material: PBT, 21.3 inch in length, precise injection molding blades cause low vibration, high utilization of wind energyl
- The generators adopts permanent magnet rotor alternator，with a special kind of stator design, efficiently decrease resistance torque. Meanwhile, wind turbines match the generators quite well to increase its reliability.
- Optimized design of aerodynamic contour and structure, with yaw adjustment system, the wind direction position is automatically read, the wind turbines fetures with high power generation efficiency, breeze start, long life, corrosion resistance, waterproof performance, anti-sand
- Easy to install and maintain the friendly environmental design wind turbine, this 1200W wind turbine generator kit is perfect for green windmill, homes, businesses, and industrial energy supplementation
- This wind turbine boost charging controller is equipped with an advanced MPPT boost charging unit, enabling it to start charging at low voltage and low wind speed. The build-in MPPT tracking unit allows for low wind speed and low voltage boost power generation without dragging the wind turbine. This wind turbine is an excellent choice for those seeking efficient and reliable charging solution.

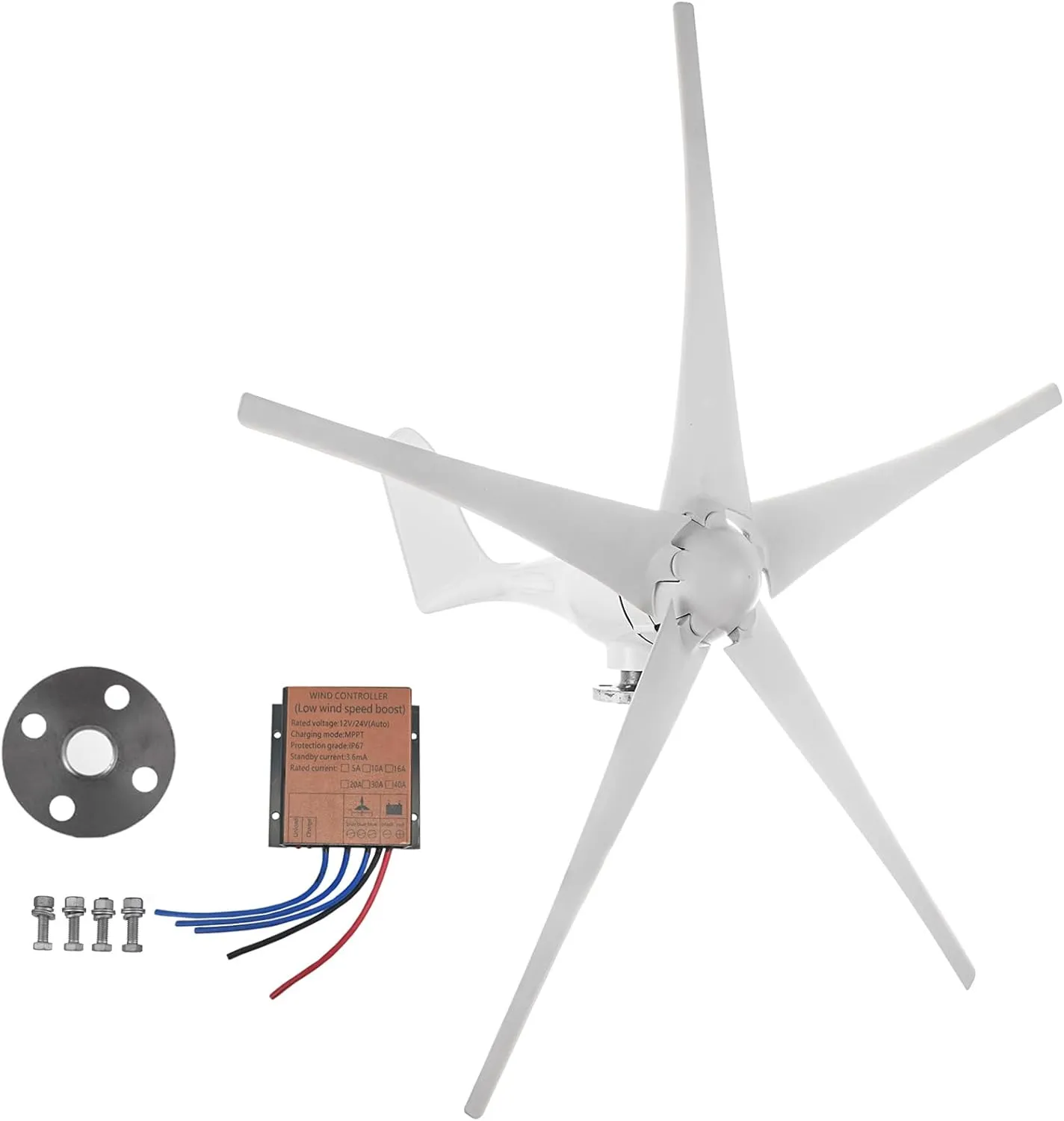

Wind Turbine 1200W DC 12V Wind Turbine Generator with 5 Blades Wind Turbine Kit for Homes Energy Supplementation
Item Specification
Type: Wind Turbine GeneratorVoltage: 12V
Brake Voltage:14.5V
Power Source: Wind
Max Power: 1200W
Rotor Diameter: 4.27 ft
Turbine Recovery voltage: 13.2V
Start-up Wind Speed: 2.5m/s(8'/s)
Rated Wind Speed:12m/S(38'/s)
Number of Blades:5
Battery Capacity: 200AH-400AH
Battery overcharging Protection : 16.5V(Turn off Load Output)
Battery Discharging Protection : 10.7V(Turn off Load Output)
Battery Discharge Recovery Protection : 12V(Recover Load Output)
Tower Diameter :>80 mm(3.2")
Tower Height:4.5m-10m(15-33')
Axis Orientation: Horizontal
Static Power: 15mA
Battery Voltage: DC 12V
Inbreaking Protection: IP67
Rated Panel Power: 1300W
Working Temperature:-30~ 80℃
Packing Dimension: 27.95x11.42x8.66inch
Packing Weight: 17.28lbs
Rated Speed:800RPM
Controller Model:FWS03/06-12
Material of Wind Leaf: PBT
Package Including:
1 x Wind Turbine
1 x Controller
1 x Nose Cone
1 x Set Screws and Nuts
5 x Blades
1 x Instruction Manual
