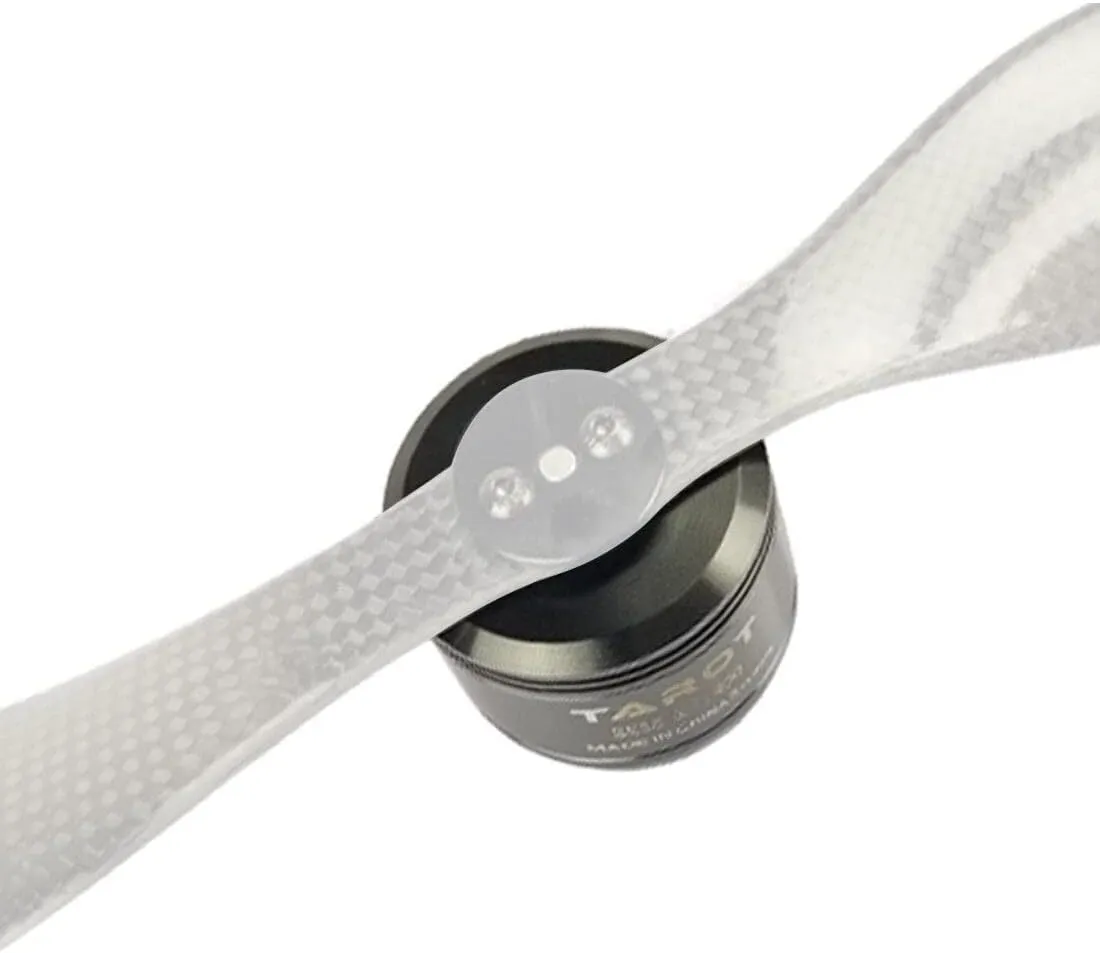

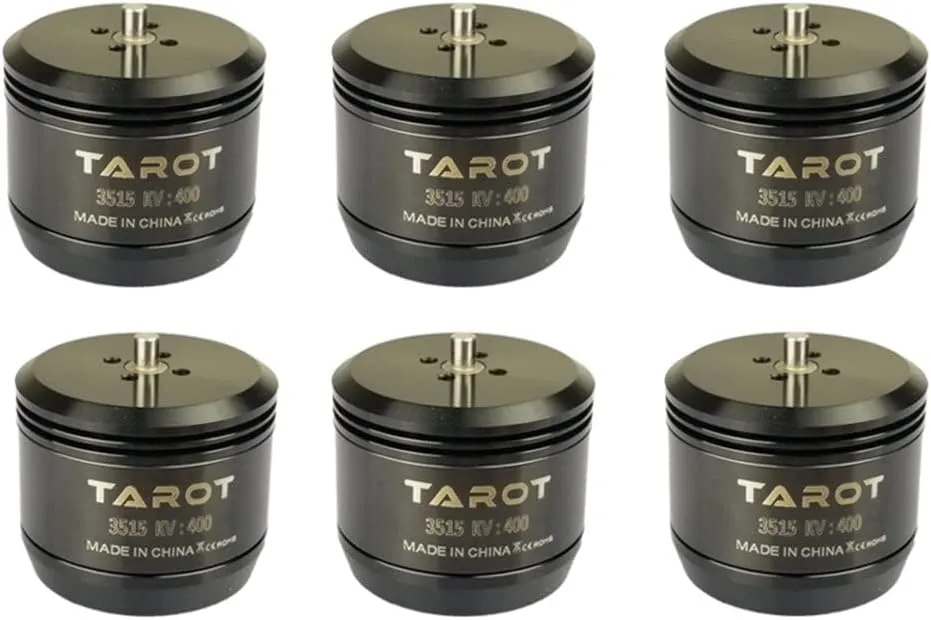

- Tarot 3515/400KV brushless motor, Multi-Rotor High-Efficiency Long-Range Motor
- For DIY RC Multi-Axis Multi-Rotor Helicopter
- Brand new semi-closed structure design, lightweight, high strength, fast heat dissipation, effectively preventing sand and gravel debris from entering the motor, and also has good ventilation and heat dissipation effects
- Using extremely durable and high-quality bearings, the rotation is more stable
Description:
Tarot 3515/400KV brushless motor is specially designed for long-endurance application scenarios such as aerial surveying, mapping and surveying. It uses international standard aviation aluminum materials and is processed by high-precision CNC (precision 0.001mm). Every finished product has been inspected by strict quality standards. , To ensure the consistency of each batch.
Motor characteristics:
1: Brand new semi-closed structure design, lightweight, high strength, fast heat dissipation, effectively preventing sand and gravel debris from entering the motor, and also has good ventilation and heat dissipation effects;
2: Using extremely durable and high-quality bearings, the rotation is more stable;
3: Fully manual winding, each motor undergoes dynamic and static tests before leaving the factory to ensure the consistency of the motor;
4: IP35 dustproof and waterproof protection, unique structure to provide you with better safety guarantee.
Product parameters:
Number of lithium battery cells supported: 6S
Propeller: 14-16 inches
Stator diameter: 35mm
No-load current: 0.5A
Stator end thickness: 15mm
Number of stator ends: 12N
Motor pole number: 14P
Speed: 400KV±5%
Motor outer diameter: 42mm
Shaft diameter: 4mm
Motor height: 35mm
Maximum continuous current: 28.4A
Maximum continuous power: 630W
Internal resistance: 85m?
Propeller installation hole pitch: 12mm
Motor mounting hole distance: 25mm
Motor weight: 142g
Specifications:
3515/400KV brushless motor×1
Propeller metal mounting piece ?2.26mm×1
M3*6 cup head screw×4
M3*8 round head screw×4
