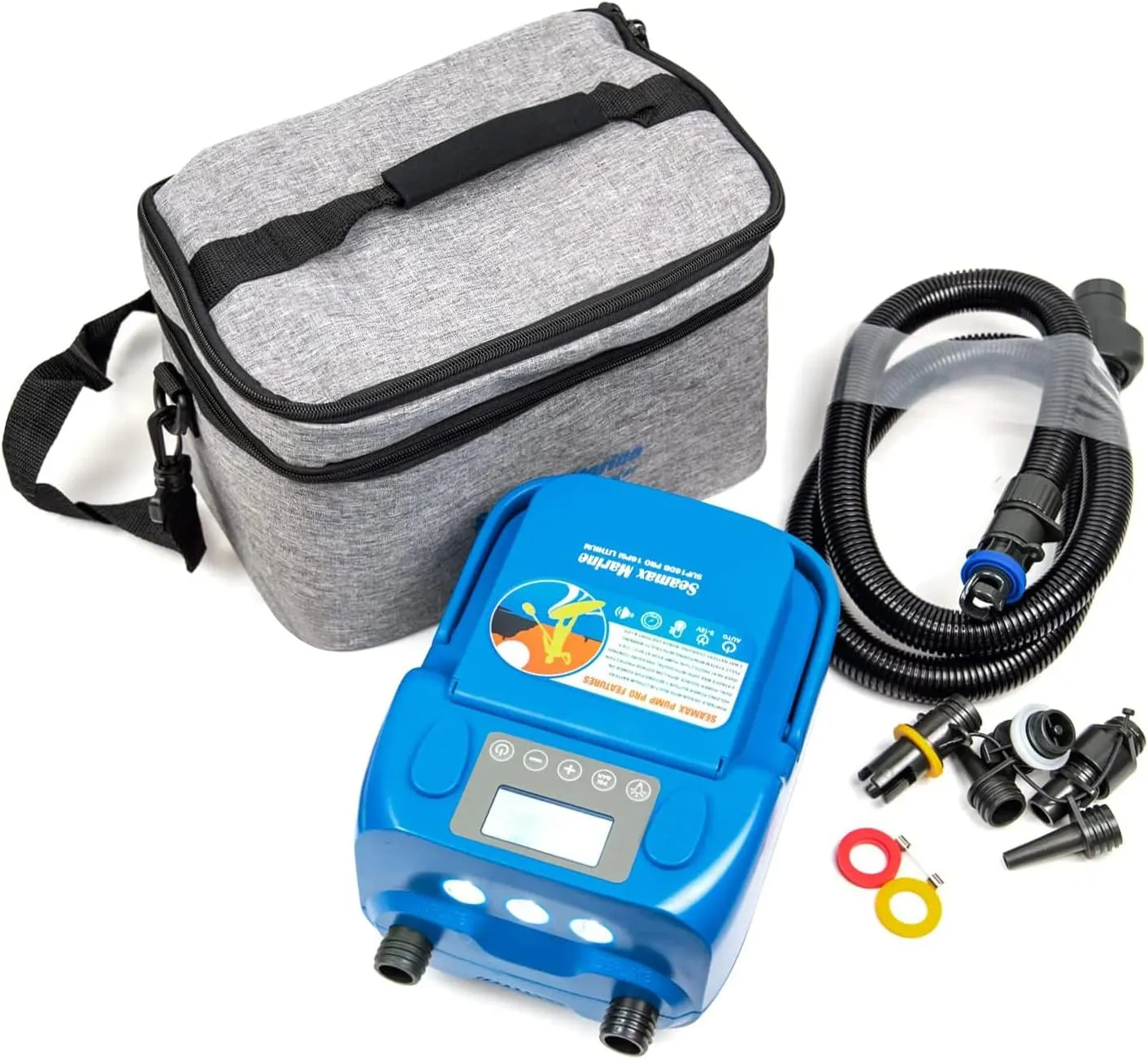

- This pump is suitable for the products that are using the Boston type, HR (Halkey-Roberts), Bravo or similar type air valve, Leafield valve etc. This type of air valve has a turning pin at the middle to control the valve’s Open & Closed position. There are universal valve adapters supplied with the pump to fit it. We have the Pump in Kite version, Please know the Kite version pump also good for Inflatable boats and all application same as the regular pump version.
- The inflator operates in two stages which can be identified by the noise of the turbine at the beginning followed by the piston. The inflator switches from turbine to piston automatically. If the chamber pressure is over 7KPa / 1 PSI, the pump will start the 2nd stage only. If the set pressure is lower than the chamber’s pressure, the pump won’t turn
- Use for Deflation - You can use it to deflate the same chamber too. Attach the yellow hose onto the deflation side of the inflator (round outlet with notches). Attach the other end to the chamber you wish to deflate.
1). Choose the proper fitting for the air valve of your inflatable boat, inflatable kite or paddle board. Put the valve at the inflation position. Attach the correct valve adapter to the inflation hose that comes with your pump. Attach the other end to the pump (smooth round outlet on the pump). 2). Connect the pump’s terminals to the battery paying close attention to the polarity. Make sure the clips are on the same color electrode and properly connected. Otherwise the pump won’t turn on or run properly. 3). Enter the maximum desired pressure by using the set pressure button. The set pressure will be shown on the right hand side of the LCD screen. The pump provides readings in metric (KPa). (Pressure: 10KPa = 100mbr = 1.45 PSI). Factory default working pressure is set at 25KPa (3.6 PSI).This pressure is suitable for most inflatable boats. 45Kpa is 6 PSI to support the inflatable kite. 4). Press the POWER button to start. During inflation, the left hand side of LCD screen should show the pressure that the inflator has reached. As soon as entered set pressure has been reached, the inflator turns off automatically. Take off the air hose from the chamber once the pump stops running. The inflator can be turned off at any time by pressing the POWER button again. It is possible to stop the inflator at any time by pressing this button. 5). The inflator operates in two stages which can be identified by the noise of the turbine at the beginning followed by the piston. The inflator switches from turbine to piston automatically. If the chamber pressure is over 7KPa / 1 PSI, the pump will start the 2nd stage only. If the set pressure is lower than the chamber’s pressure, the pump won’t be started.
