Features:
•Lightweight and compact design allows easy installation
•Automatic upper limit switch when rope disc touches the limit arm, hoisting is automatically stopped
•Dynamic and mechanical brake provides instant and safe braking
•Can operate on standard domestic power supply
•Sensor arm automatically stops motor if the wire rope is under-wound

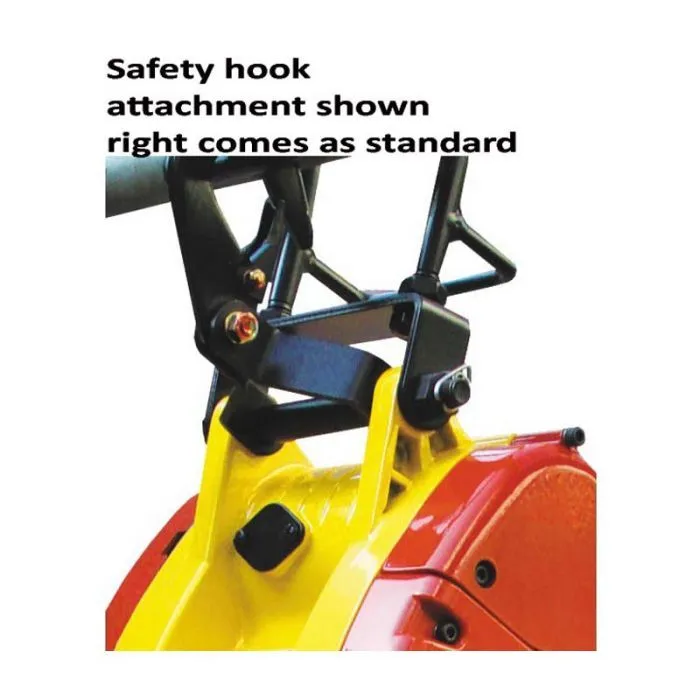

•Wire rope comes with a 360° weight hook with safety latch
| Model | KIO-300L |
| Lifting Capacity kg Wire rope Top layer | 300 |
| Lifting Speed | First layer: 13 m/Min |
| Top Layer: 18 m/Min | |
| Motor Rating IP44 | 1.6x13 |
| Braking Methods | For motor: Electromagnetic |
| For gear: Mechanical brake | |
| Maximum Lifting Height | 58m |
| Wire Rope | Diameter: 5mm |
| Length: 60m | |
| Net Weight | 25kg |
