Johns Manville Go Board Shower Pan Kit
Time saving versatile shower system that offers easy to do on-site shower pan customization
Features
- Install with a basic utility knife without crumbling or disintegrating
- Use GoBoard sealant 10.3oz tubes to seal edges for a waterproof assembly (Sealant SOLD SEPARATELY)

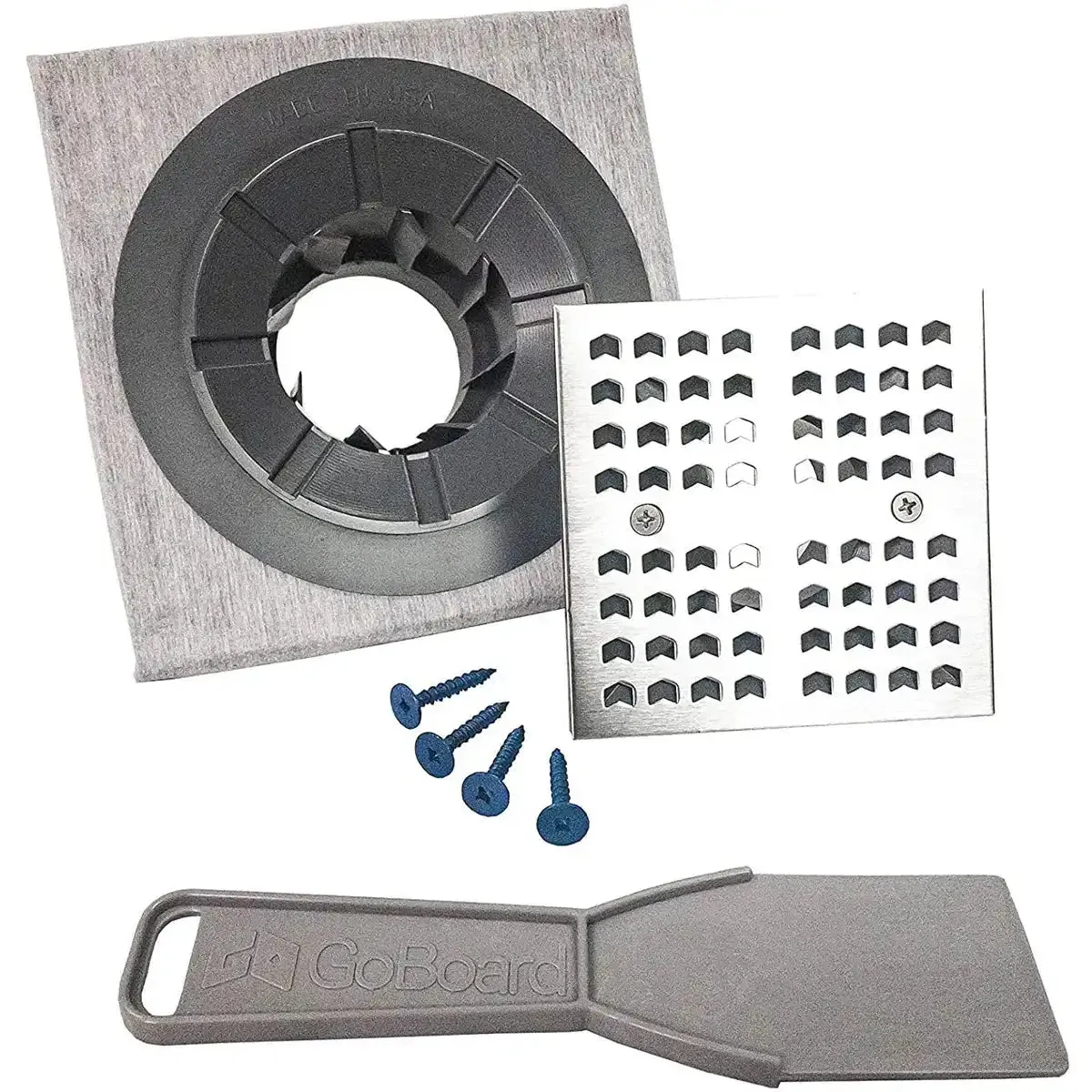

- Kit includes drain cover assembly, pre-assembled drain, mixing valve seal, pipe collar, clamping collar screws, and a 2” plastic putty knife

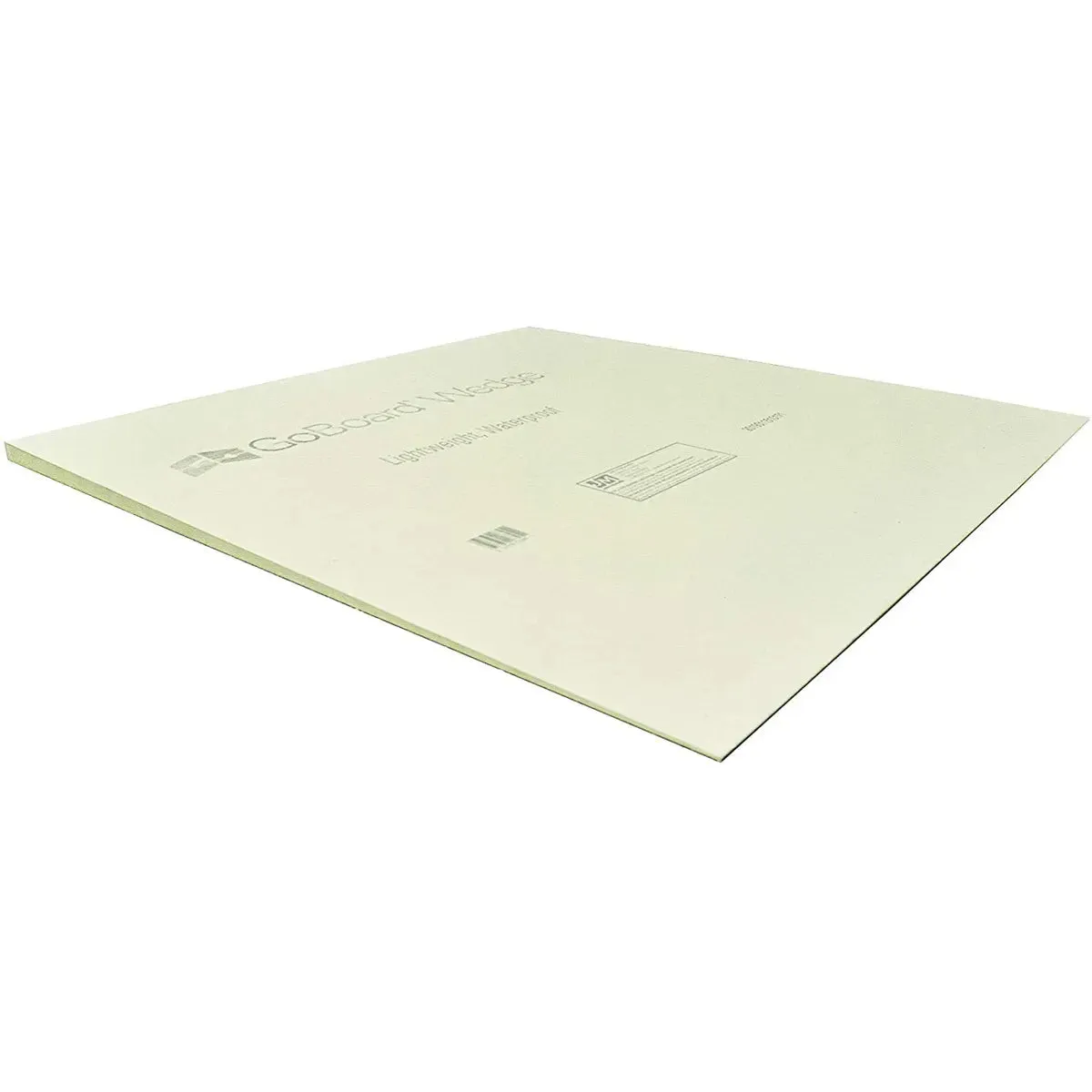

- Sloped GoBoard Wedges, there is no need to wait for specially sized pans
- 4 x 4 ft. wedges are needed for most shower pan sizes

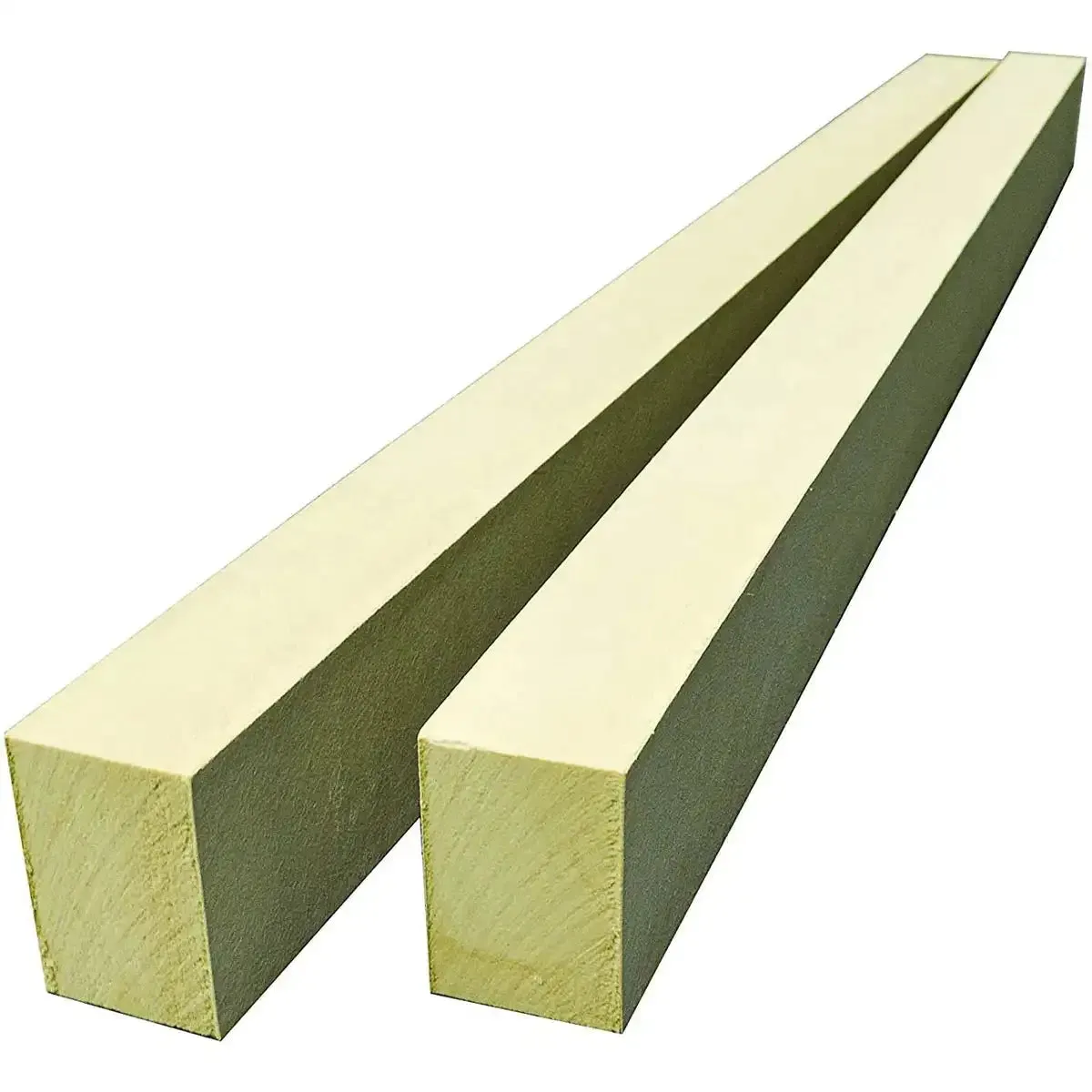

- GoBoard Curb 3-½" H x 2-½" W x 48” L
- GoBoard Wedge and Curb are manufactured using the same process and raw materials as GoBoard Tile Backer for the same level of performance
- Engineered for durability even though it’s ultra-lightweight for residential tile applications
- GoBoard Point Drain Kit, GoBoard Wedge, and GoBoard Curb
- Seal the board joints and fastener locations for a waterproof tile assembly
- Box kit size: Length 49.5” Width 49”, Height 6.75”
- Box weight 50 lbs
What's Included?
- GoBoard Point Drain Kit
- Four GoBoard Wedges - 4ft x 4ft
- Two GoBoard Curbs - 3 1/2" H x 2 1/2" W x 48" L
