Cooling capacity 2.5 Kw (8,530 BTU).

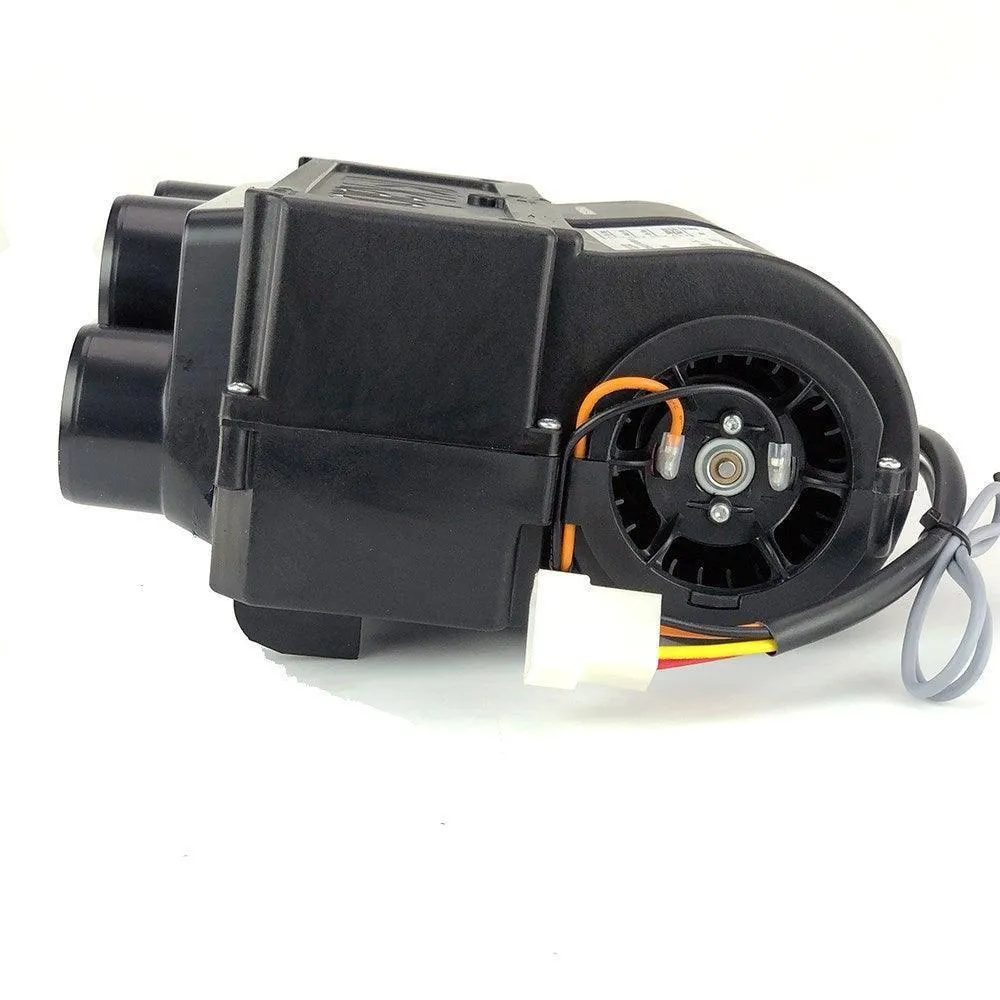

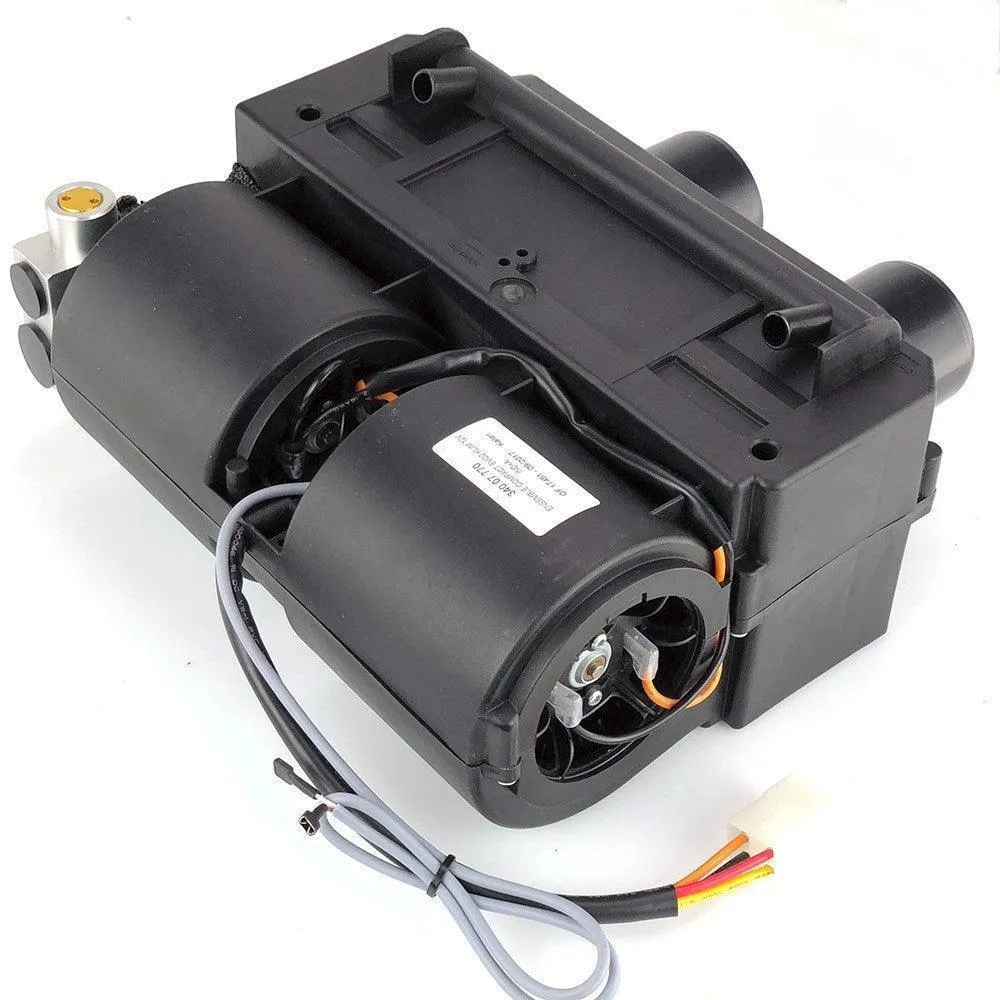

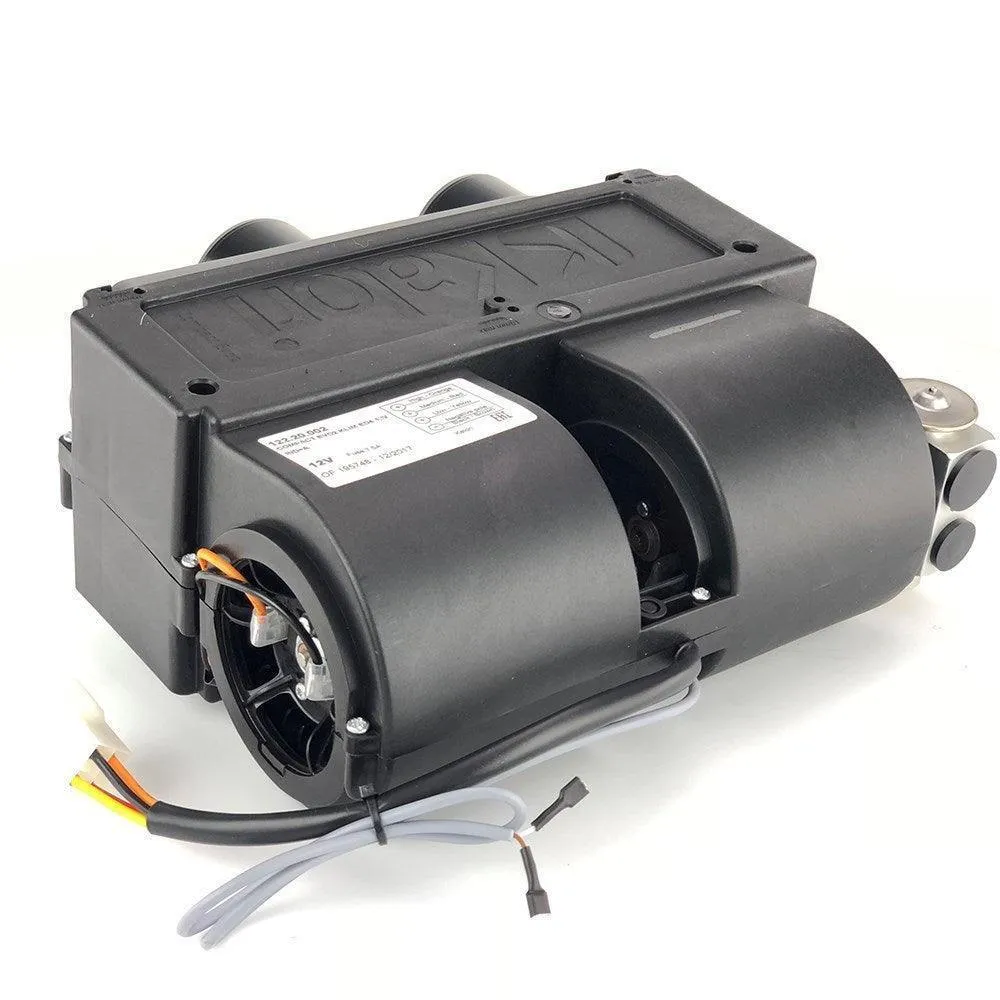

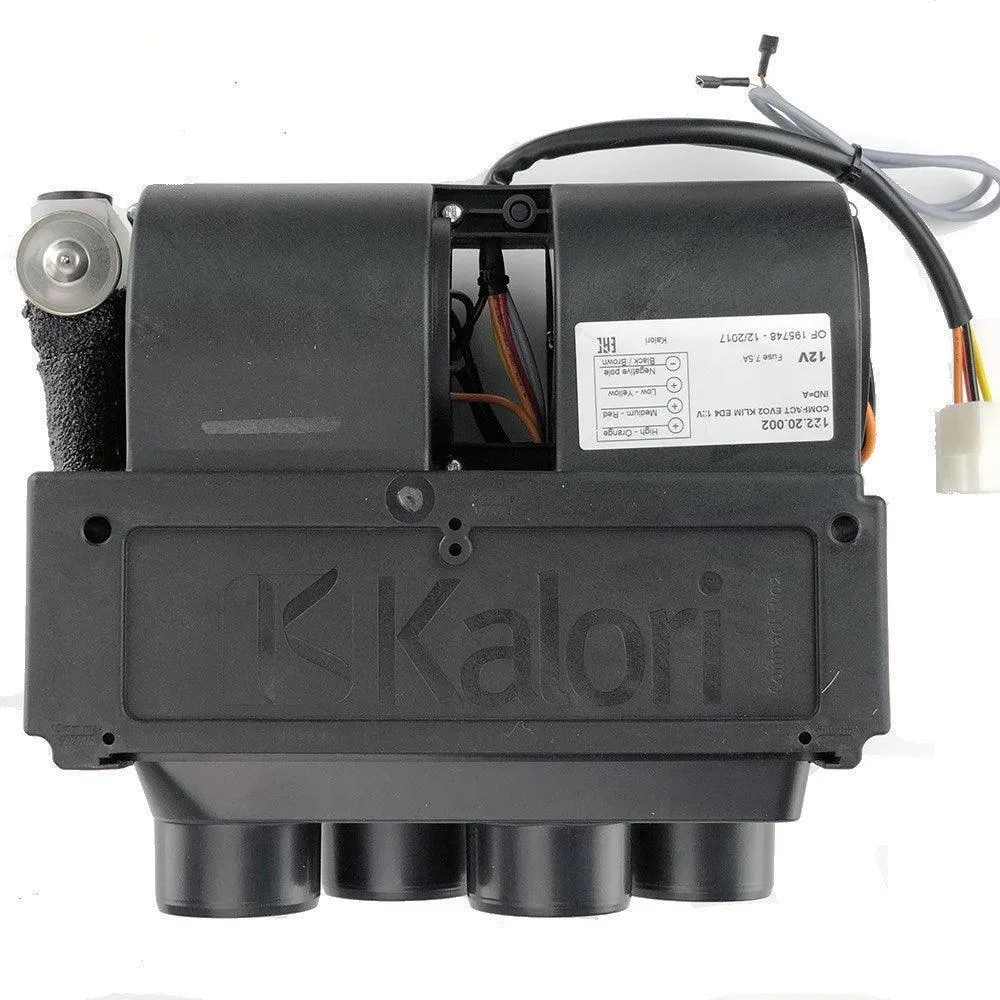

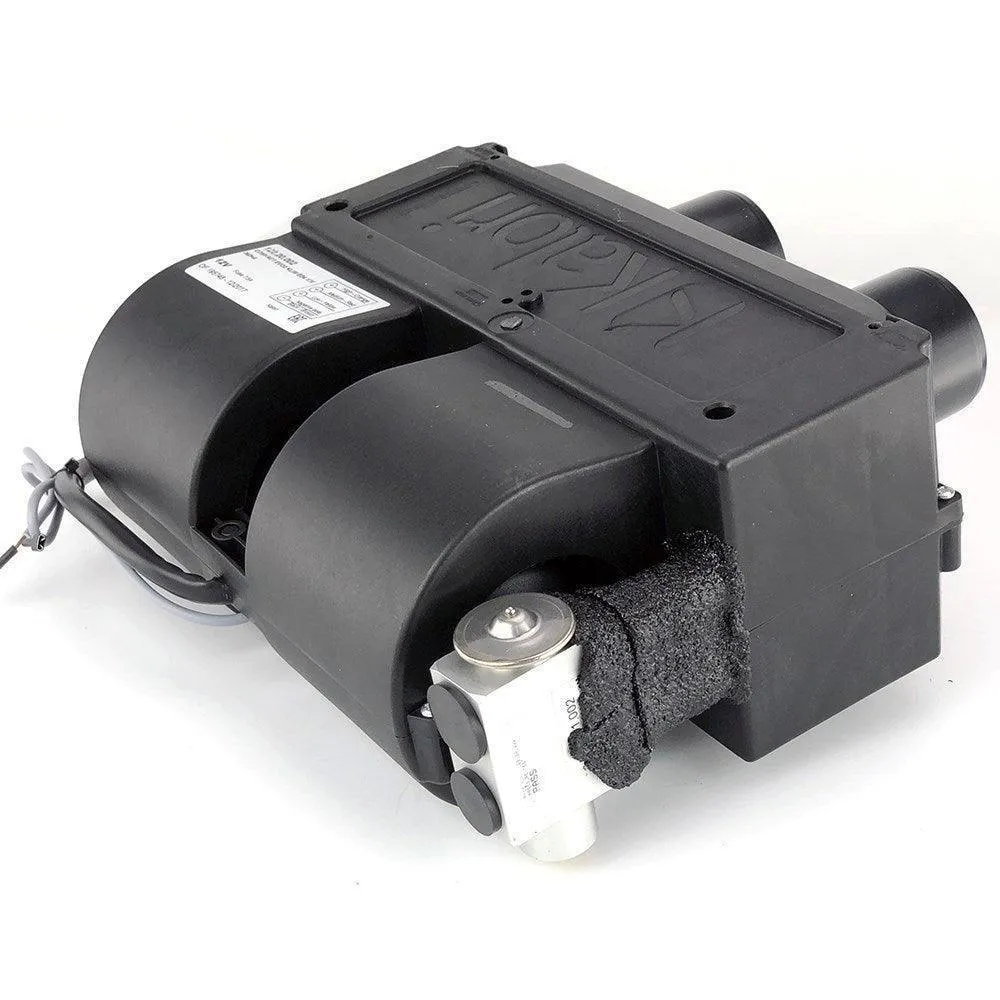

This is the smallest Air Con Evaporator unit available and is ideal for smaller vehicles.

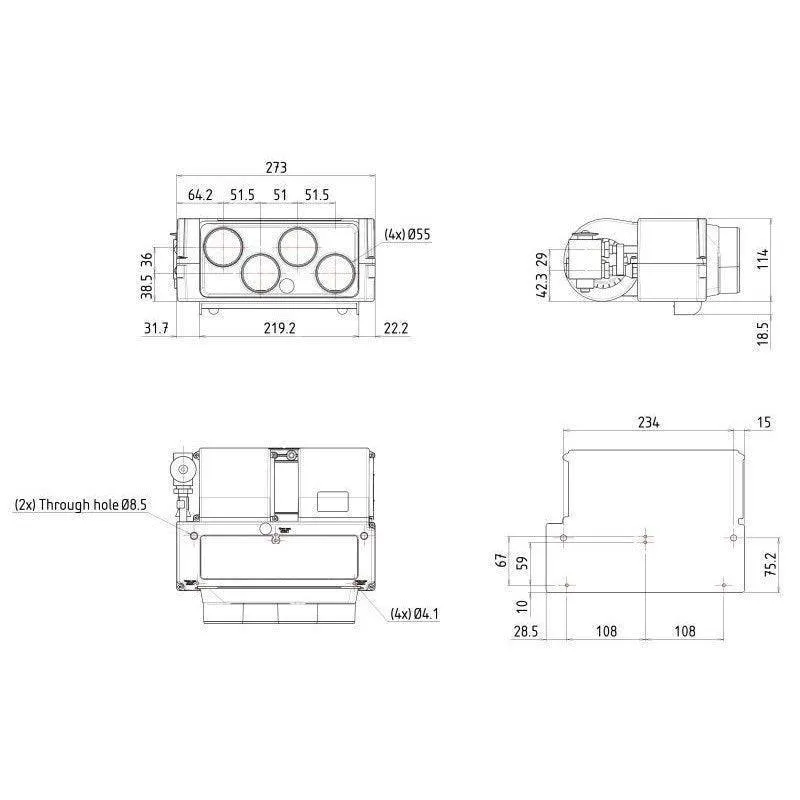

Dimensions 273mm wide x 114mm high x 235mm front to back.

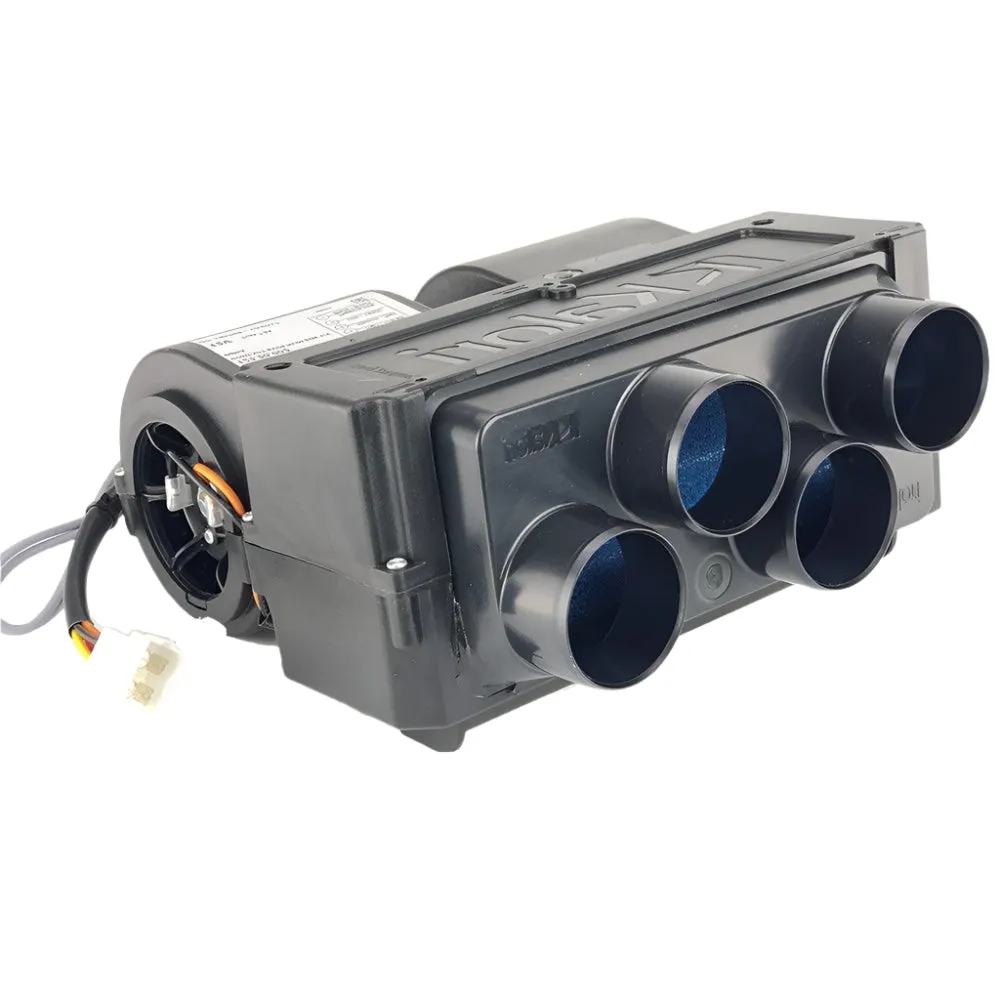

Four air outlets 55mm O.D., 49mm I.D.

12 volts. Max 100 watt consumption.

Maximum airflow 230m³ per hour.

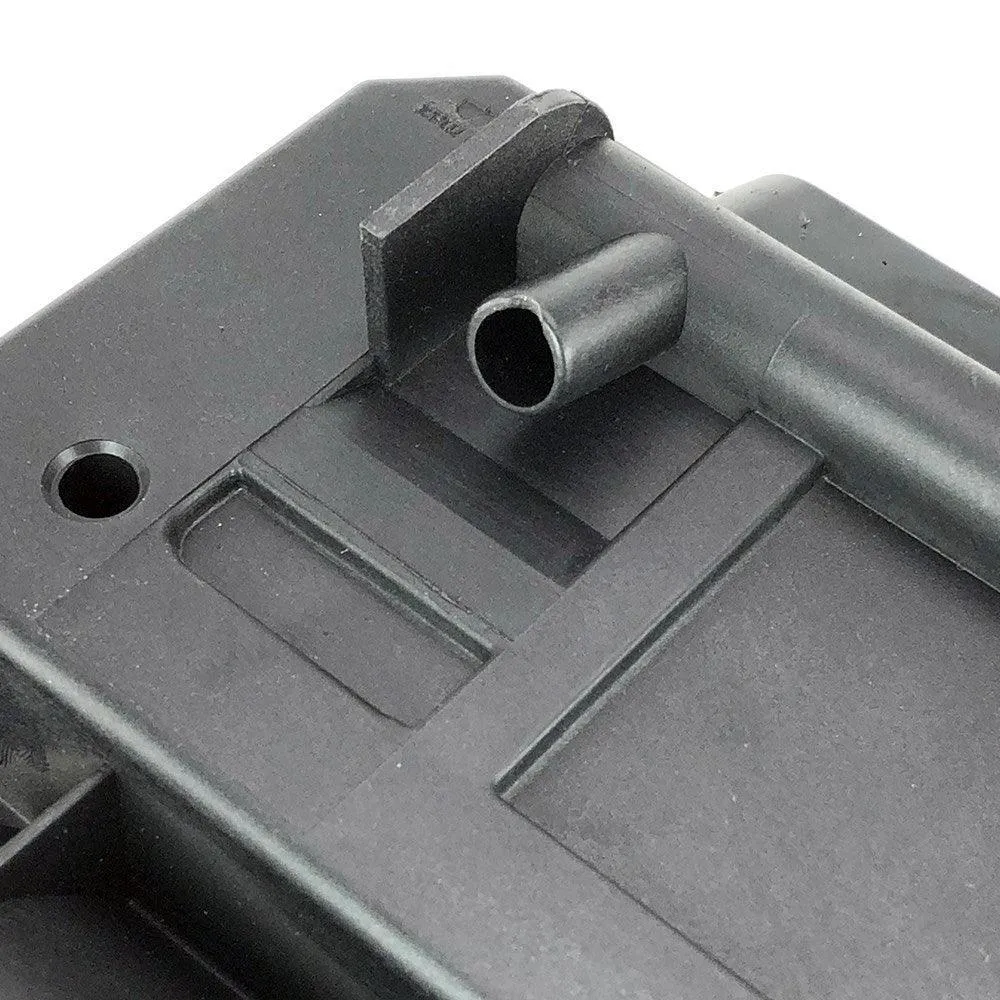

Two 12mm condensate drain outlets on the bottom.

Two, 8mm through-holes for mounting.

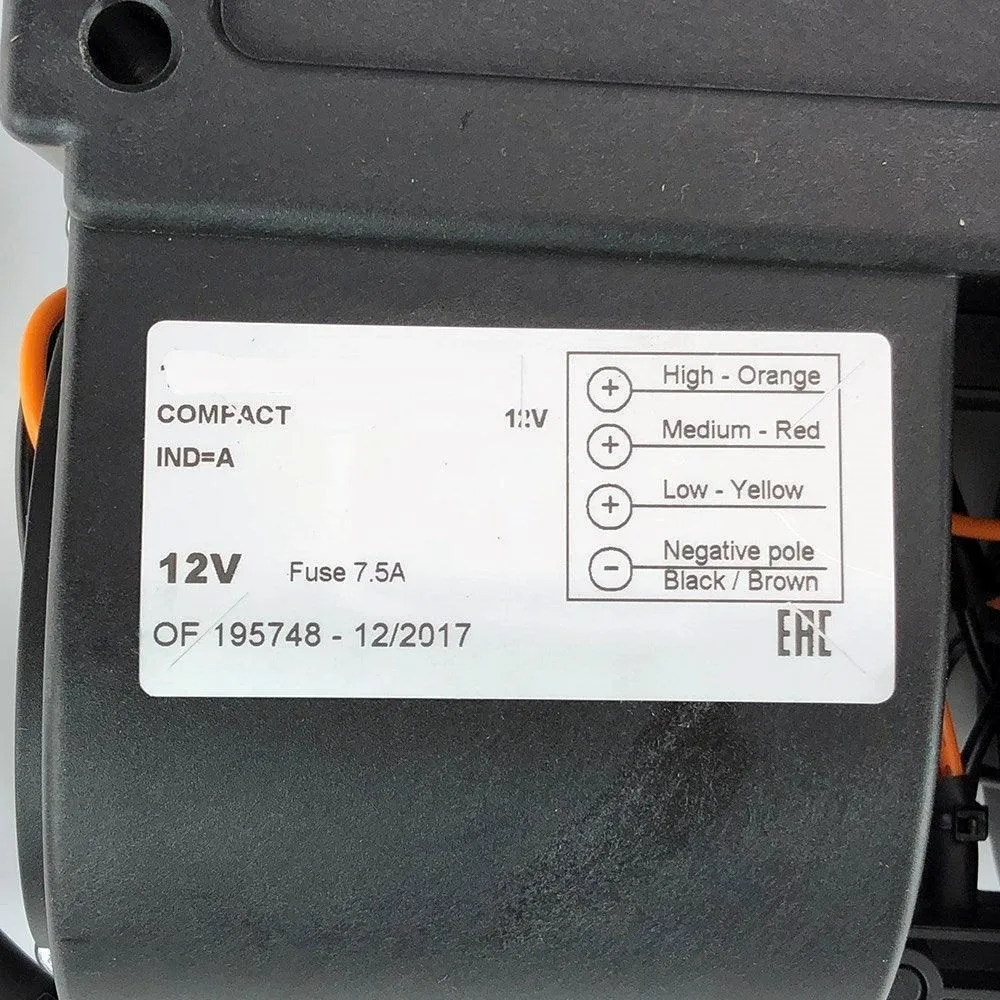

Three speed fan with 4 x male terminals in connector plug.

NOTE: The front outlet plenum is removable and can be replaced with our #HTPLEN, cable operated, multi directional plenum .

The unit has an integral thermostat / sensor that is intended to protect the unit from overcooling by disengaging the compressor clutch when the temperature reaches 3ºC.(the grey wire with two 5mm female spades).

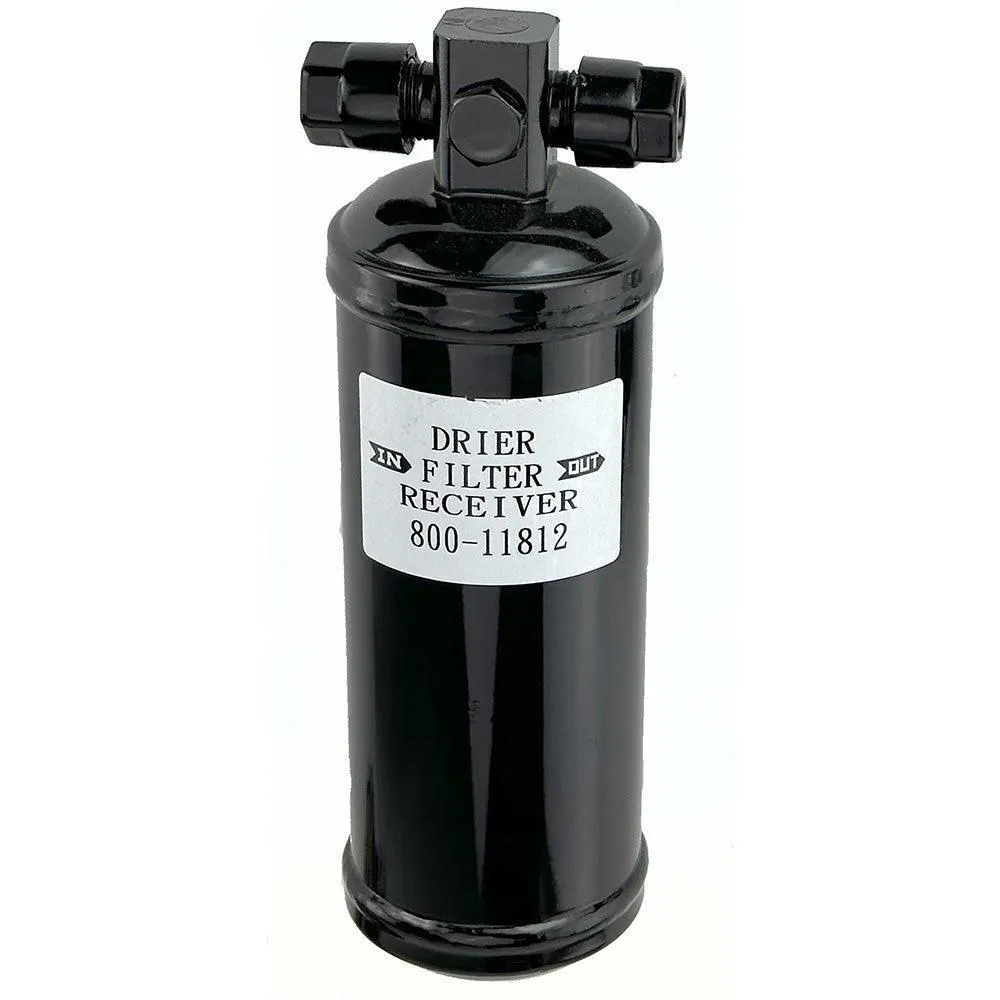

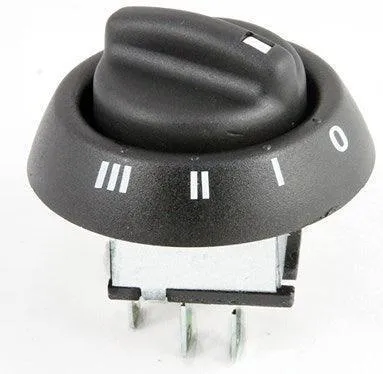

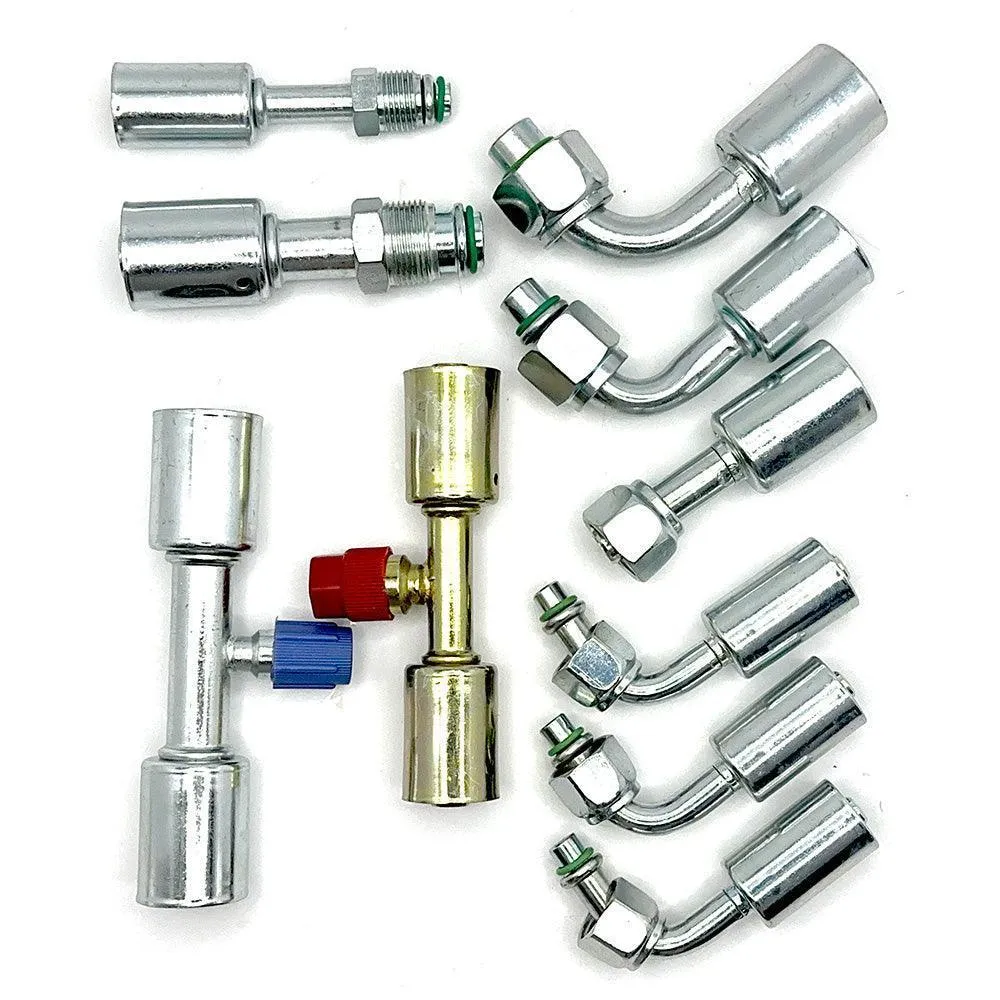

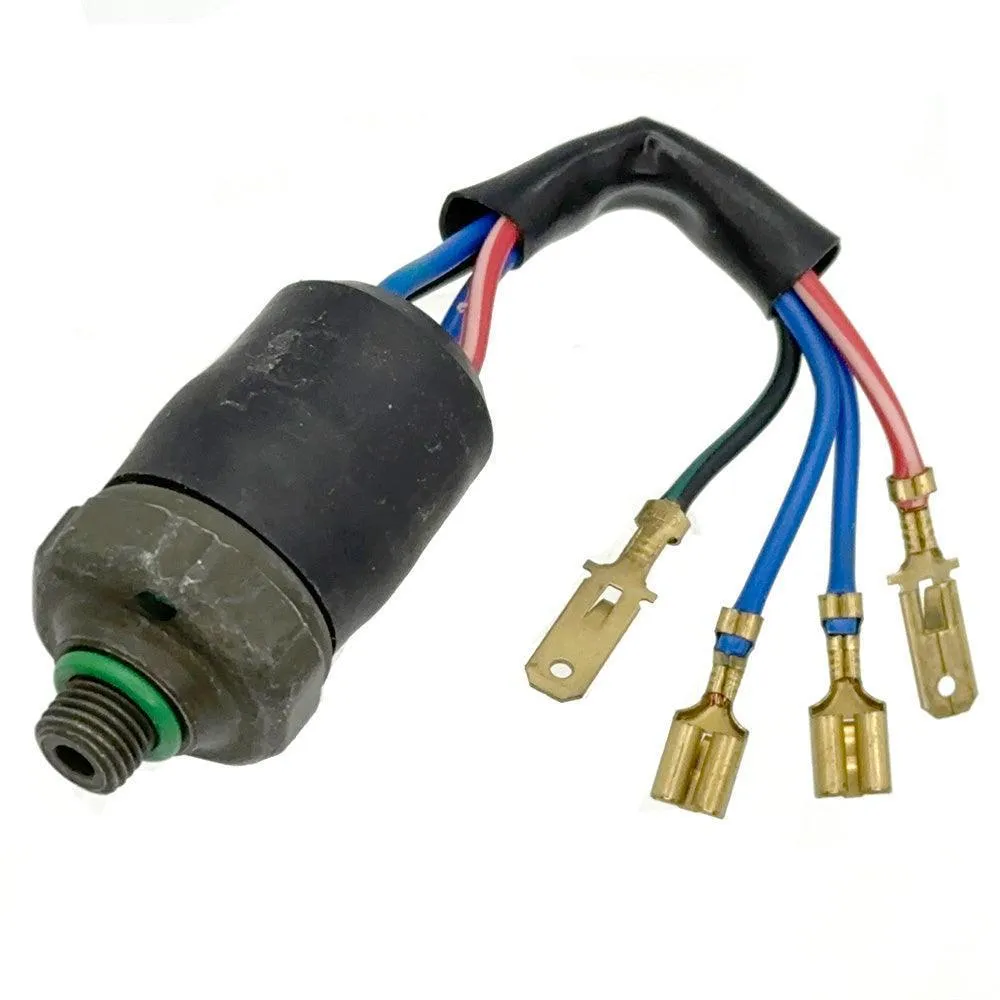

The Kit includes a desiccant drier with a Trinary safety/radiator fan switch, a complete set of hose unions, ‘O’ rings and charging/service ports (not interchangeable but others are available) and a three-speed fan switch.

(Hoses not included but we can supply. See installation guide.)

Installation of this kit requires an engine-driven compressor and a condensing radiator (possibly with cooling fan).

Hose lengths can be determined and purchased after installation of components.

A local Air Conditioning specialists will charge and test the system for you.

NOTE: For UK customers we can now offer a crimping service for your hoses. For just £50 we will collect your boxed-up hoses and unions, crimp them and send them back to you. Full instructions on how to prepare the hoses and unions will be sent with the kit.

COMPACT AIR CONDITIONING KIT #AIRCON5
