- Build to Last: The product is made of high-quality aluminum, nylon and aluminum alloy through a painting process, with high strength, rust resistance, wear resistance, and long service life.
- Powerful Thrust: The premium materials, powerful motor, stable structure, and three-blade nylon propeller provide you with a superb thrust of up to 1763.7lbs, so you can use it with peace of mind.
- Strong Power: The 1000W high power brushless motor with 3000rpm high speed provides you with strong power, allowing you to drive fast and save a lot of time and energy.
- Flexible Manipulation: This product can be adjusted steplessly, you just need to twist the handle to adjust the speed. The green button on the handle can also be used for cruise control. In addition, the 90° rotatable bracket and omni-directional rotating joystick allow for the more flexible operation to meet different needs.
- Easy Maintenance: Compared with the brush motor, the brushless motor is more efficient and easy to maintain without replacing the carbon brush, which saves time.
Details
Ergonomic Handle: It is ergonomically designed for easy hand grip while increasing friction to prevent hand slipping.
Aluminum Suspension Bracket: The 90° rotatable bracket can be used to firmly fix the product on the boat, which is more stable and durable.
Anti-swirl Plate: It prevents the propeller from lifting water when the water is shallow and also improves propeller efficiency.
Professional Nylon Propeller: The three-blade propeller with a streamlined design can reduce water resistance.
Application
It is suitable for small ships with different materials less than 9.84ft in length, such as inflatable boats, iron boats, plastic boats, fiberglass boats, and wooden boats. It is widely used in fishery, aquaculture, outdoor exploration, etc.
Specifications
Material: Aluminum, Nylon, Aluminum Alloy
Color: Black
Process: Painting
Operation Mode: Electric
Tilt System: Manual Tilt
Motor Type: Brushless Motor
Start: Electric Acceleration Start
Gear Oil: Specialized Gear Oil for Outboards or Automotive Transmission Fluid
Reverse Gear: Yes
Cruise Control: Yes
Batteries Included: No
Power: 1000W
Voltage: 48V
Rated Current: 21A
No-Load Speed: 3000rpm
Gear Ratio: 2.08 (27:13)
Speed: 5-8km/h/3.11-4.97mph( Depending on the Environment, Water Area, Hull Load, the Speed Will Vary)
Thrust: Within 800kg/1763.7lbs
Propeller Model: 7-1/4x5 inches(The Size of the Propeller is 7.25 inches/18.4cm, and the Propelling Distance of the Propeller is 5 inches/12.7cm after One Revolution)
Applicable Vessel Size: Suitable for Vessels with a Stern Plate of 45-55cm/17.72-21.65in
Length of Suitable Ships: Less than 3m/9.84ft
Gross Weight: 14kg/30.86lbs
Net Weight: 10kg/22.05lbs
Product Size: 26.5*22*110cm/10.43*8.66*43.31in
Package Size: 110*42*30cm/43.31*16.53*11.81in
Package Included

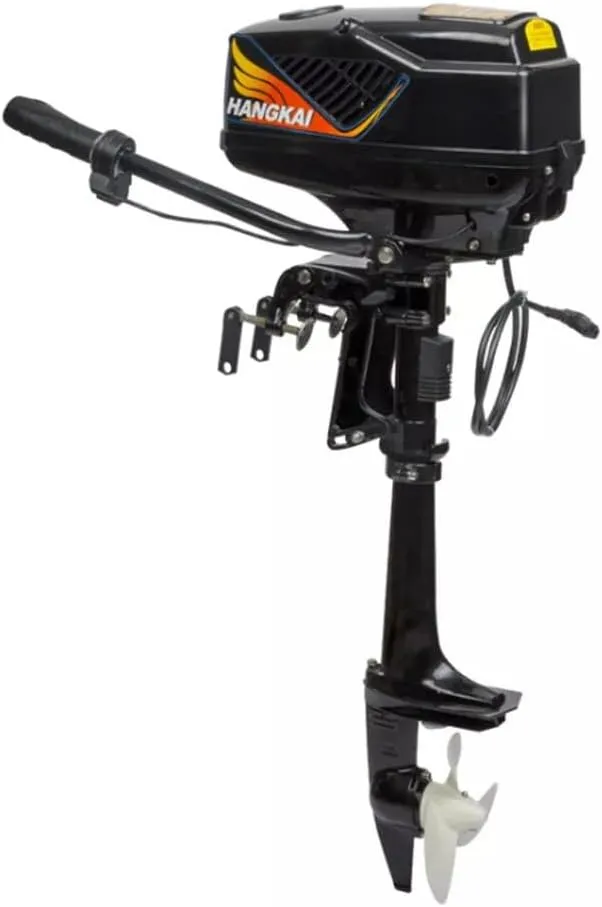

1* Electric Outboard Motor
